Ceramic foam filters

Foam ceramic filters for max. casting temperatures up to 1450°C in various sizes, thicknesses and materials. The application of ceramic foam filters can be divided into the aluminium foundry sector and the iron, steel and heavy metal foundry sector.


TEMPERATURE RESISTANCE
Up to 1700°C
MATERIAL
Divers
PRODUCT TYPE
Ceramic foam filters
Type
AS Al2O3 SIC ZrO2

Products Products

Category: Filter

Tags: Ceramic foam filters

Share:

  • Temperature resistant

    High temperature resistance for casting temperatures up to 1700°C.

    Various materials

    Select the right type for the casting depending on the intended use.

    Standardized

    Available in various standard sizes and thicknesses.

    CHARACTERISTICS

    Foam ceramic filters for max. casting temperatures up to 1450°C in various sizes, thicknesses and materials. The application of ceramic foam filters can be divided into the aluminium foundry sector and the iron, steel and heavy metal foundry sector. In our assortment you will find:

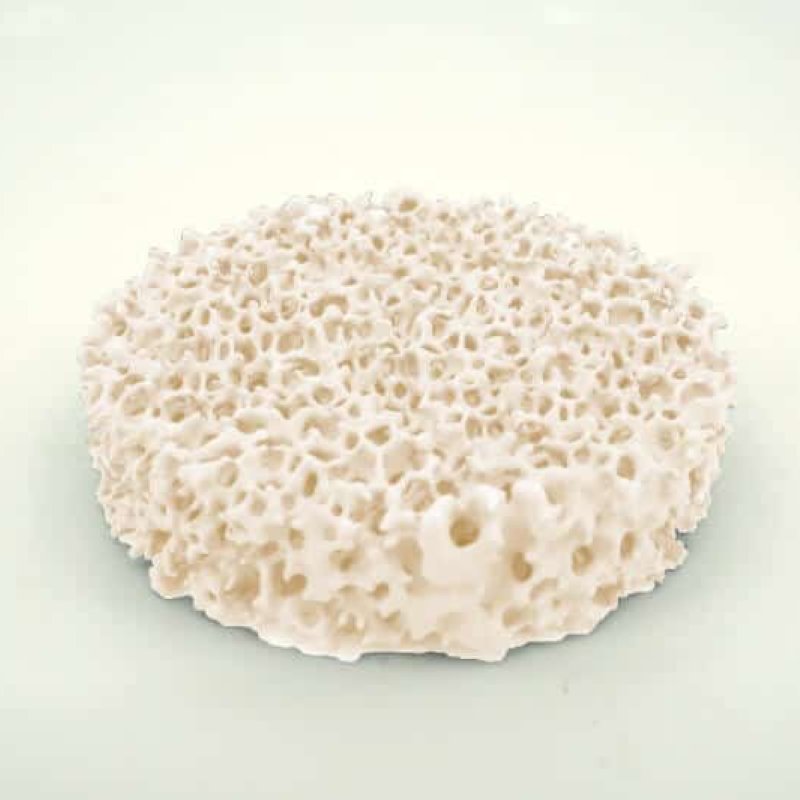

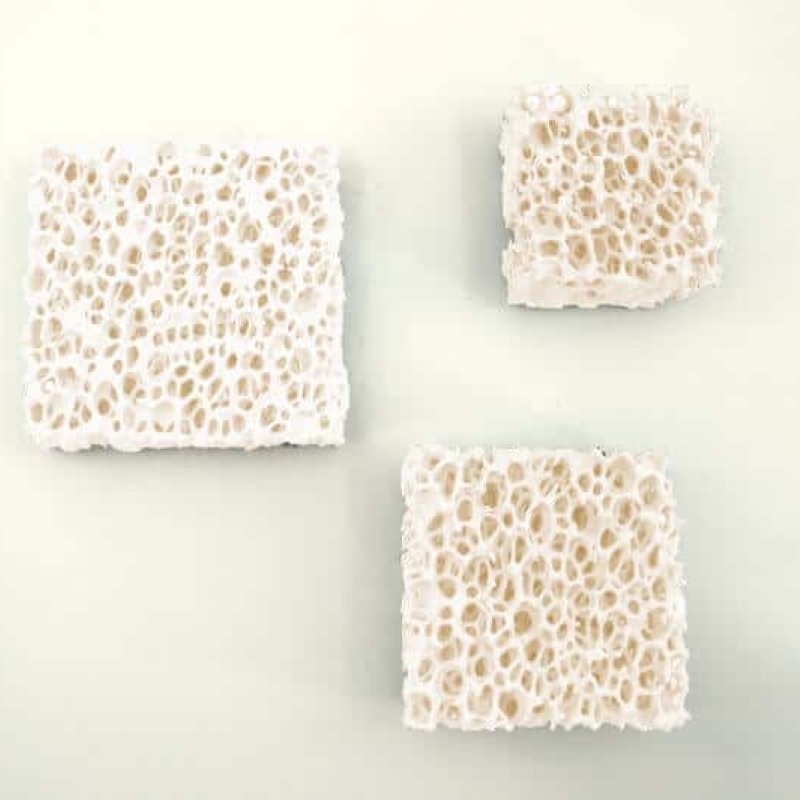

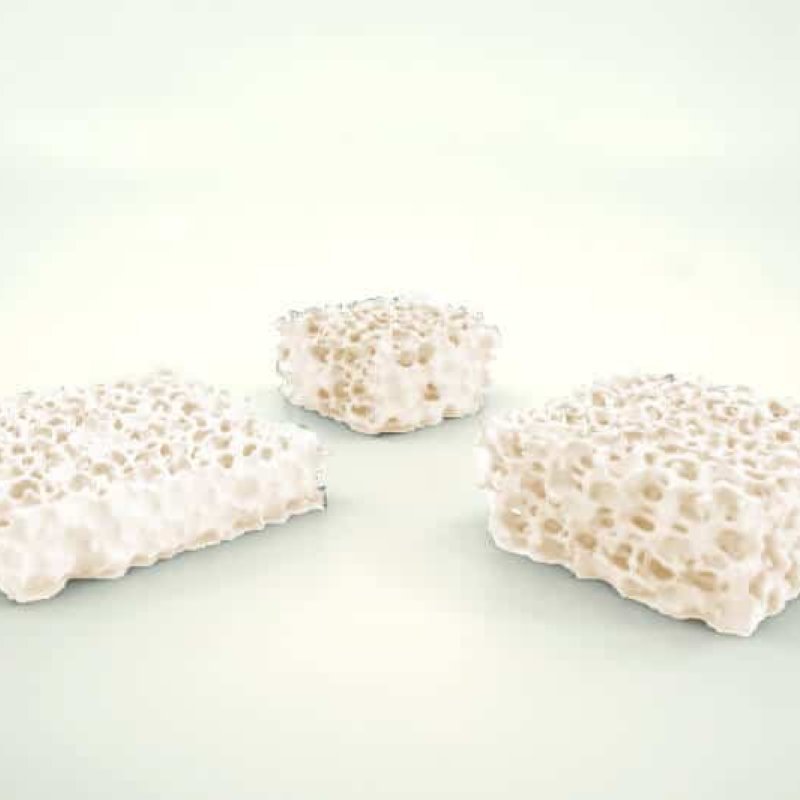

    • Gasser ceramic foam filter AS (up to 820°C) for many aluminium casting alloys

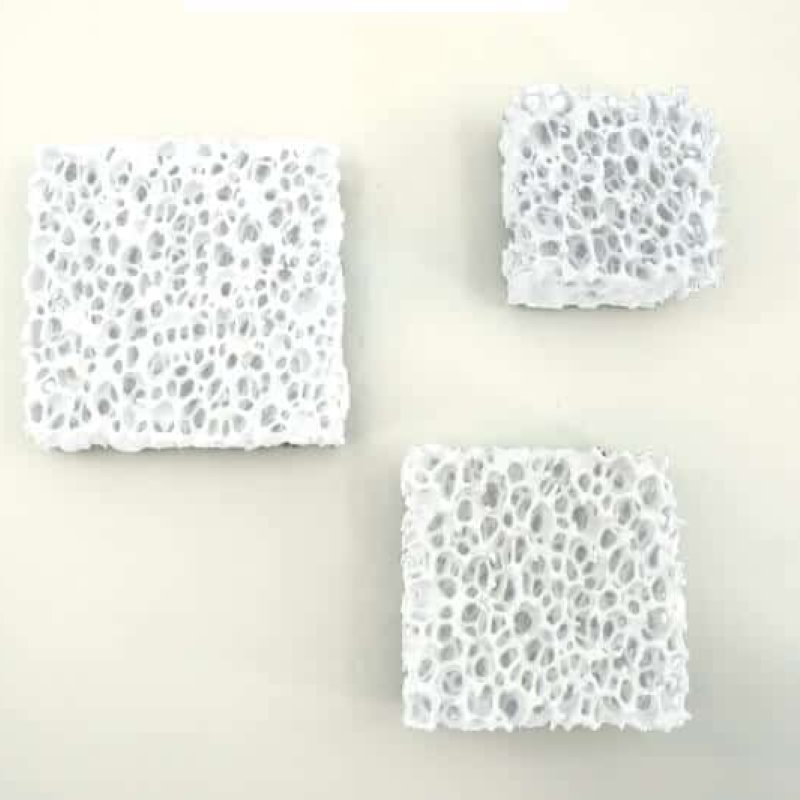

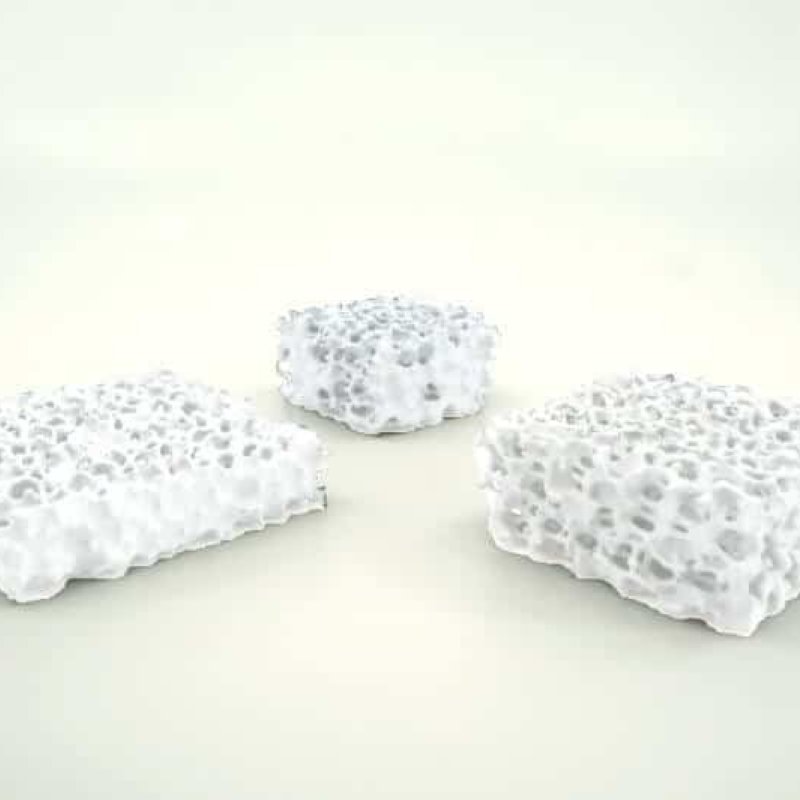

    • Gasser ceramic foam filter Al2O3 (up to 1000°C) for common aluminium castings and wrought alloys as well as pure aluminium

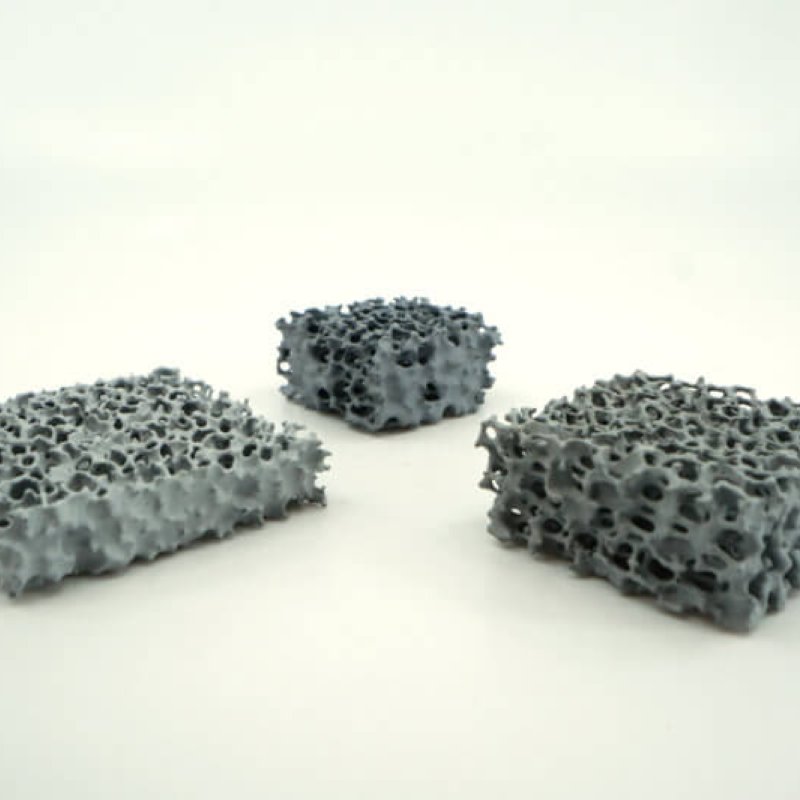

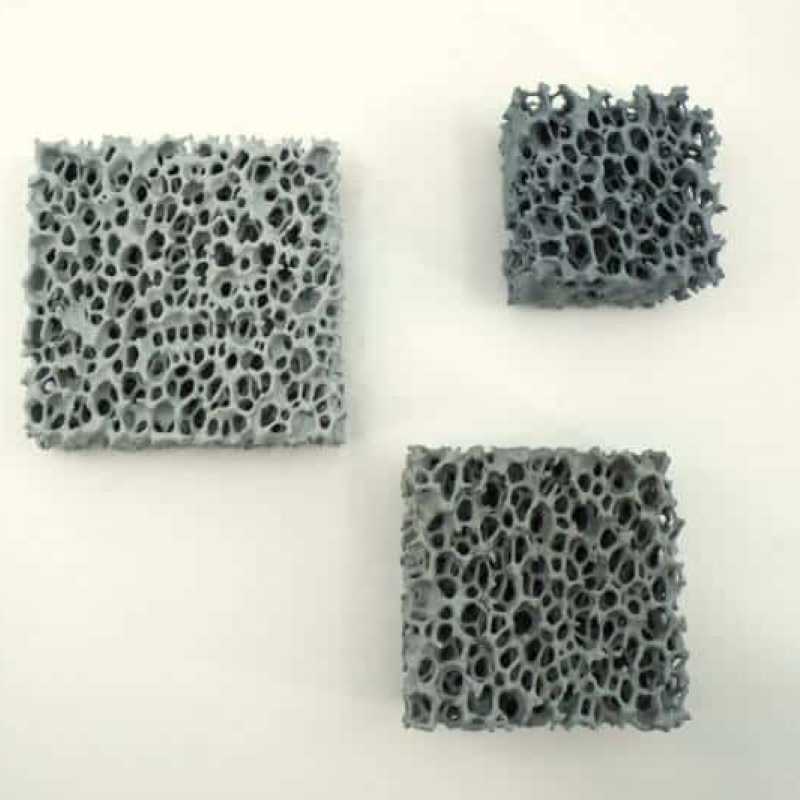

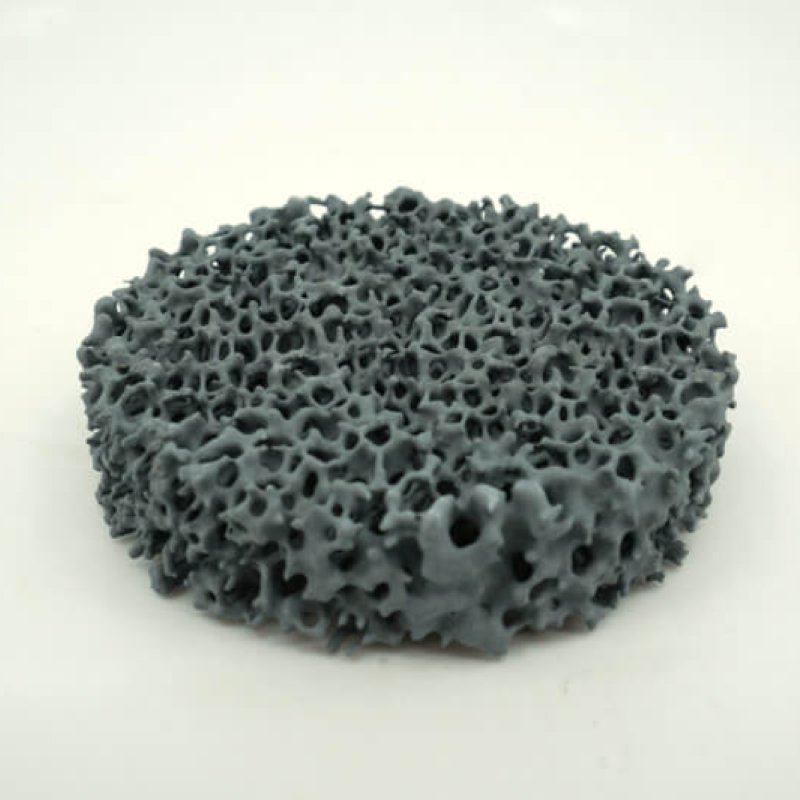

    • Gasser ceramic foam filter SIC (up to 1450°C) for cast iron alloys, copper, bronze and brass alloys as well as aluminium alloys

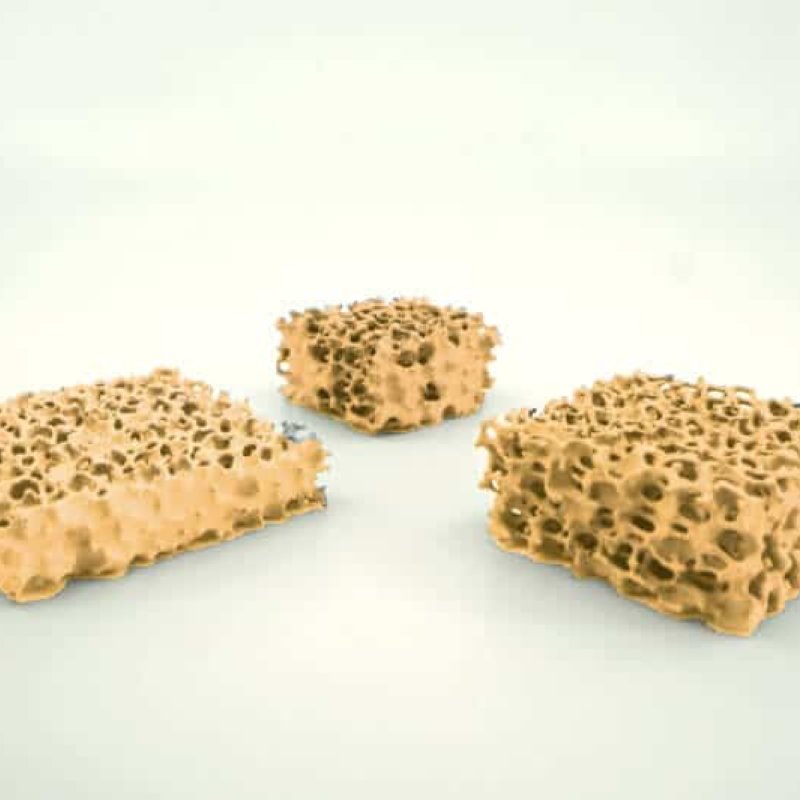

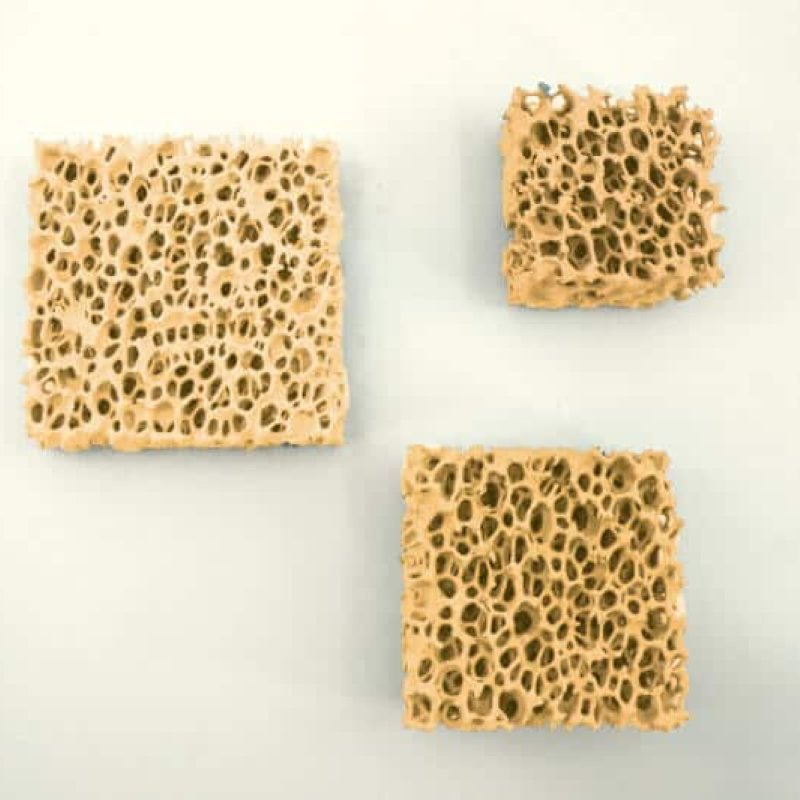

    • Gasser ceramic foam filter ZrO2 (up to 1700°C) for common steel alloys, cobalt and nickel-based alloys as well as iron and magnesium castings

    Benefits

    • High temperature resistance
    • For casting temperatures up to 1700°C
    • Available in standard sizes and thicknesses
    • Special sizes and thicknesses on request
    • Application in aluminium foundries
    • Application in iron casting
    • Application in cast steel
    • Application in heavy metal casting

    TECHNICAL DETAILS

    AS Al2O3 SIC ZrO2
    material Al2O3 SIC, SiO2 bonded ZrO2, partially stabilized with MgO
    application Cast aluminium alloys Cast aluminium alloys Iron casting alloys Steel alloys
    Special alloys* Wrought alloys Copper alloys KObalt alloys
    Pure aluminium Bronze alloys Nickel-base alloys
    Special alloys* Brass alloys Ferrous alloys
    Aluminium alloys Cast magnesium
    Special alloys* Special alloys*
    Max. Gauge temperature 820°C 1000°C 1450°C 1700°C
    Temperature resistance Good Good Good Good
    Three-point bending strength Min. 0,3 mPa Min. 0,5 mPa Min. 0,5 mPa Min. 1,0 mPa
    Material density 1,9 g/cm3 2,2 g/cm3 1,9 g/cm3 4,6 – 4,8 g/cm3
    Coefficient of thermal expansion Approx. 7,6 * 106 K1 Approx. 8,5 * 106 K1
    Porosity PPI 10
    *Depending on filter dimensions, filters may also be available in PPI 20, 30, 40 and 50.
    Standard sizes Round: D40 | D50 | D60 | D70 | D75 | D90 | D100 | D125
    Square: 40×40 | 50×50 | 55×55 | 75×50 | 75×75 | 100×50 | 100×75 | 100×100 | 125×125 | 150×150
    *Other filter sizes, conical filters, special sizes etc. are available on request. All above dimensions are in millimeters.
    Standard thicknesses 22 mm
    *Special thicknesses are available upon request. Note: not every filter size is available in every thickness.
  • Downloads

    Data sheet Gasser Foam Ceramic Filter AS

    Product properties, typical applications and availabilities.

    Download

    Data sheet Gasser ceramic foam filter Al2O3

    Product properties, typical applications and availabilities.

    Download

    Data sheet Gasser foam ceramic filter SIC

    Product properties, typical applications and availabilities.

    Download

    Data sheet Gasser ceramic foam filter Zro2

    Product properties, typical applications and availabilities.

    Download
